Mobile crusher

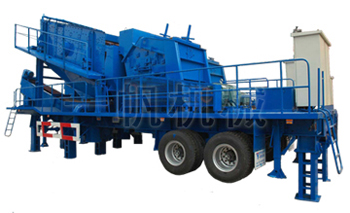

Mobile Crusher

  1. Mobile Crusher Application
 The Mobile Crusher (mobile crushing and screening plants) is applied to multistage crush large materials, and then screen the discharges according to their different specifications. The whole set plants is widely used to mine, building material, highway, rail way and hydropower industries, etc., finish crushing and screening operations at one time, produce? required size and output for consumers.
  2. Mobile Crusher Features and Benefits
 The Mobile Crusher (plants) has the advantage of reasonable matching, unobstructed discharge all line, reliable working, convenient operation, high efficiency and saving energy.? Especially the mobility is very good, so it can extend with the raw material places or the construction place, and it can also make multiple matching, get to different product requirements.
  3.Mobile Crusher Composition and working principle
 The Mobile Crusher (mobile crushing and screening plants) is composed of primary crushing and screening station and secondary one, belt conveyor, etc. Every crushing station is an independent working unit, they can respectively assume their different responsibility, and the belt conveyer is responsible for material transmitting and piling up between each crushing station.

Model YDPS-50 YDPS-80 YDPS-100 YDPS-150
Capacity 50t/h 80t/h 100t/h 150t/h
Max Feed Size 340mm 425mm 500mm 630mm
Model Power 102.5kw 192kw 220kw 332.7kw
Hopper 3M*M*M 5M*M*M 7M*M*M 9M*M*M
Feeder GZT0724 GZT0724 GZT0932 GZT1148
Jaw Crusher PE400*600 PE500*750 PE600*900 PE750*1060
Impact Crusher PF1010 PF1210 PF1214 PF1315
Vibrating Screen 3YK1235 3YK1545 3YK1548 3YK1860
Sand Washer XL-508 XL-610 XL-610 XL-762
Metal Detector RCYD(c)-6.5 RCYD(c)-6.5 RCYD(c)-8 RCYD(c)-8
